Square Trussing

SQ-F24-350

11.48ft/3.5m Straight Segment, Unit Weight: 12.71kg/28lb

SQ-4109

1.64ft. Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 13lbs. 1 Set of Connecting Hardware Included

SQ-4110-75

2.46ft. Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 17lbs. 1 Set of Connecting Hardware Included

SQ-4110-875

2.87ft. Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 18lbs. 1 Set of Connecting Hardware Included

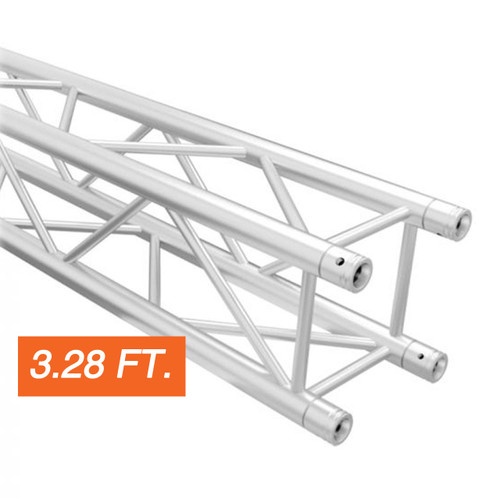

SQ-4110

3.28ft. Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 19lbs. 1 Set of Connecting Hardware Included

4.92-123

4.92ft. Segment, Tolerance Free Standard Conical connector with a main tube wall thickness of .08in / 2mm and constructed to the highest safety ratings by certified welders

SQ-4111

4.92ft. Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 25lbs. 1 Set of Connecting Hardware Included

SQ-4111-1250

4.10ft. Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 39lbs. 1 Set of Connecting Hardware Included

6.56-123

6.56ft. Segment, Tolerance Free Standard Conical connector with a main tube wall thickness of .08in / 2mm and constructed to the highest safety ratings by certified welders

SQ-4112

6.56ft Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 31lbs. 1 Set of Connecting Hardware Included

SQ-4112-2.15

SQ-4112-2.15

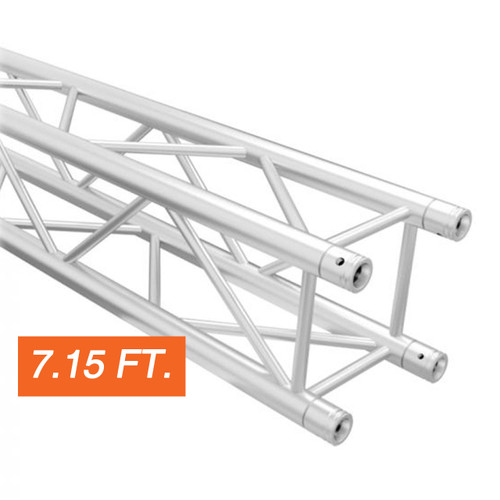

7.15-123

7.15ft. Segment, Tolerance Free Standard Conical connector with a main tube wall thickness of .08in / 2mm and constructed to the highest safety ratings by certified welders

SQ-4113

8.20ft Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 36lbs. 1 Set of Connecting Hardware Included

SQ-4112-2.75

9.02ft Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 39lbs. 1 Set of Connecting Hardware Included

9.20-123

9.20ft. Segment, Tolerance Free Standard Conical connector with a main tube wall thickness of .08in / 2mm and constructed to the highest safety ratings by certified welders

SQ-4114

9.84ft. Segment, Overall Width: 11 7/16", Outer Diameter Tubing: 2", Diagonal Bracing: 3/4", Wall Thickness: 0.008", Weight: 42lbs. 1 Set of Connecting Hardware Included
