Product Description

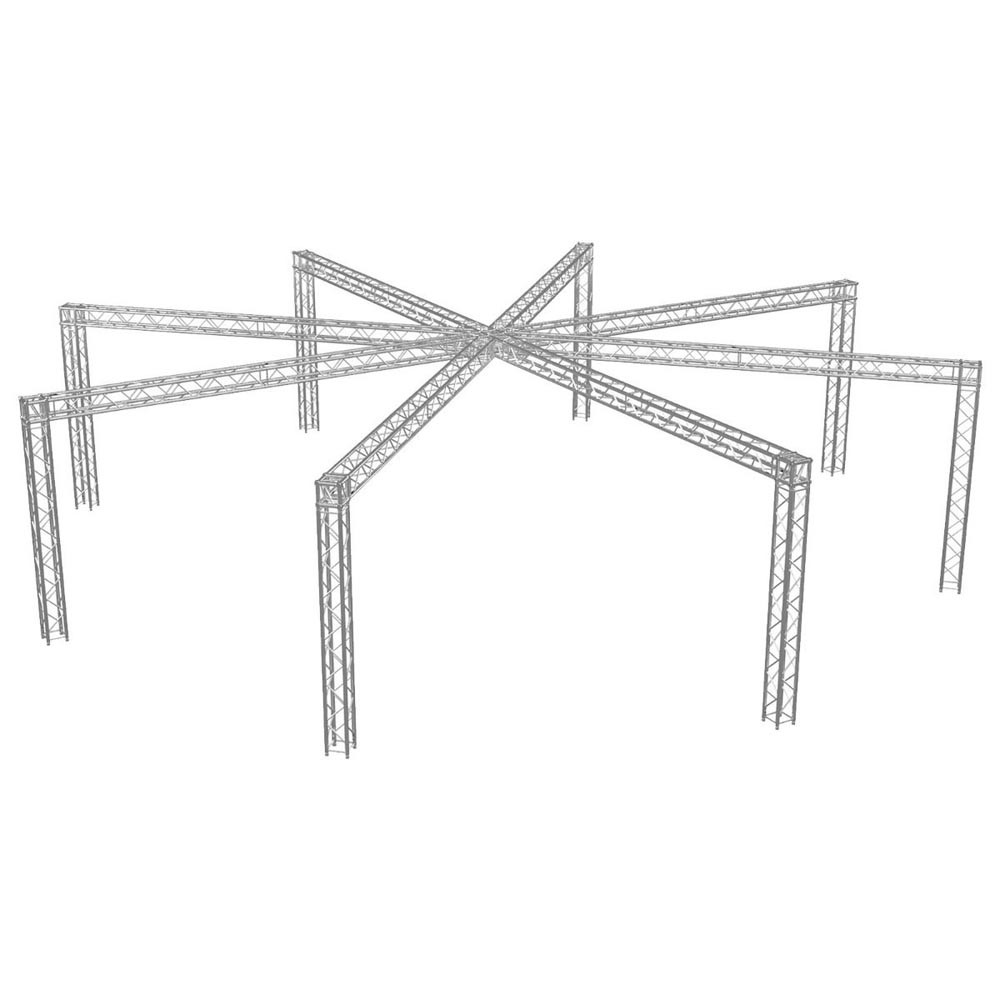

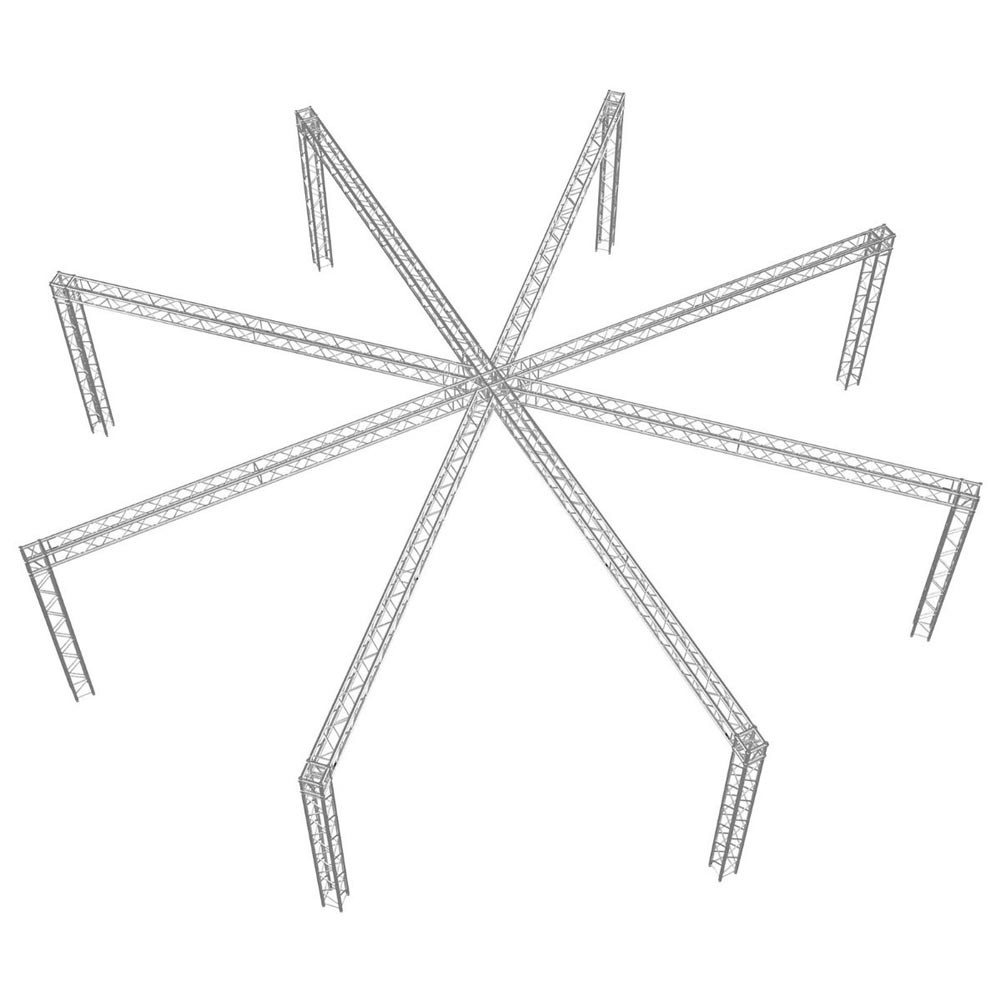

ProX XTP-10W9ES38 F34 Spider Trade Show Display Booth Truss System
ProX XTP-10W9ES38 F34 Trade Show Display Booth Truss System measures 9 x 38 Ft. Ideal for Trade shows, Exhibits, Kiosks, DJ booths, Pop-Up Shops, Retail Spaces, Concerts, Performances, Speeches, and Church Gatherings. ProX Truss offers reliable staging support systems built to high safety standards. It's rugged yet lightweight, suitable for mobile or permanent installations.
Let's create an unforgettable experience for participants together. ProX provides various temporary booth and trade show solutions for indoor and outdoor events. ProX's Engineering Department specializes in custom DJ and Production set projects, ensuring safety and stability. Collaborate with ProX's Truss and Show Designers to build your unique, professional display with ProX Truss. All ProX Truss products are 100% compatible and constructed with certified welders for top safety ratings.
Features:
- TUV-Certified for safety, quality, and sustainability.
- Tolerance-free conical connectors.
- Strong truss main tube (0.08in / 2mm wall thickness.)
- Material: EN-AWT6 6082 Aluminum and welded steel.
- Exacting Specifications - Manufactured in-house.
Specifications:
- Exterior Dimensions & Weight:
- XT-BP12A (9): 1.50"H x 12.00"W x 12.00"L - Weight: 4.00 lbs
- XT-SQ820 (25): 98.40"H x 12.00"W x 12.00"L - Weight: 36.00 lbs
- XT-JB6W-2W (8): 11.45"H x 11.45"W x 11.45"L - Weight: 17.00 lbs
- Shipping Dimensions & Weight:
- Box 1 of 2: XT-BP12A (9 boxes) 2.00"H x 13.00"W x 13.00"L - Shipping Weight: 5.00 lbs
- Box 2 of 2: XT-JB6W-2W (8 boxes) 12.00"H x 12.50"W x 12.50"L - Shipping Weight: 17.50 lbs
Whta's in the Box?
- (1) ProX XT-JB10W-SPIDER 8-Way + 2-way Top Bottom Spider Lighting Junction Box - Spider Shaped Truss for F34 Conical Truss
- (8) ProX XT-JB6W-2W 6 Way Square Truss Junction Blocks - Includes 2 Way Half Conical Couplers
- (25) ProX XT-SQ820 8.20 Ft. 2.50 M F34 Square Truss Segments | 2 mm Wall
- (9) ProX XT-BP12A 12" Aluminum 6mm Truss Top Plates for F34 F32 F31 Conical Square Truss with Connectors
