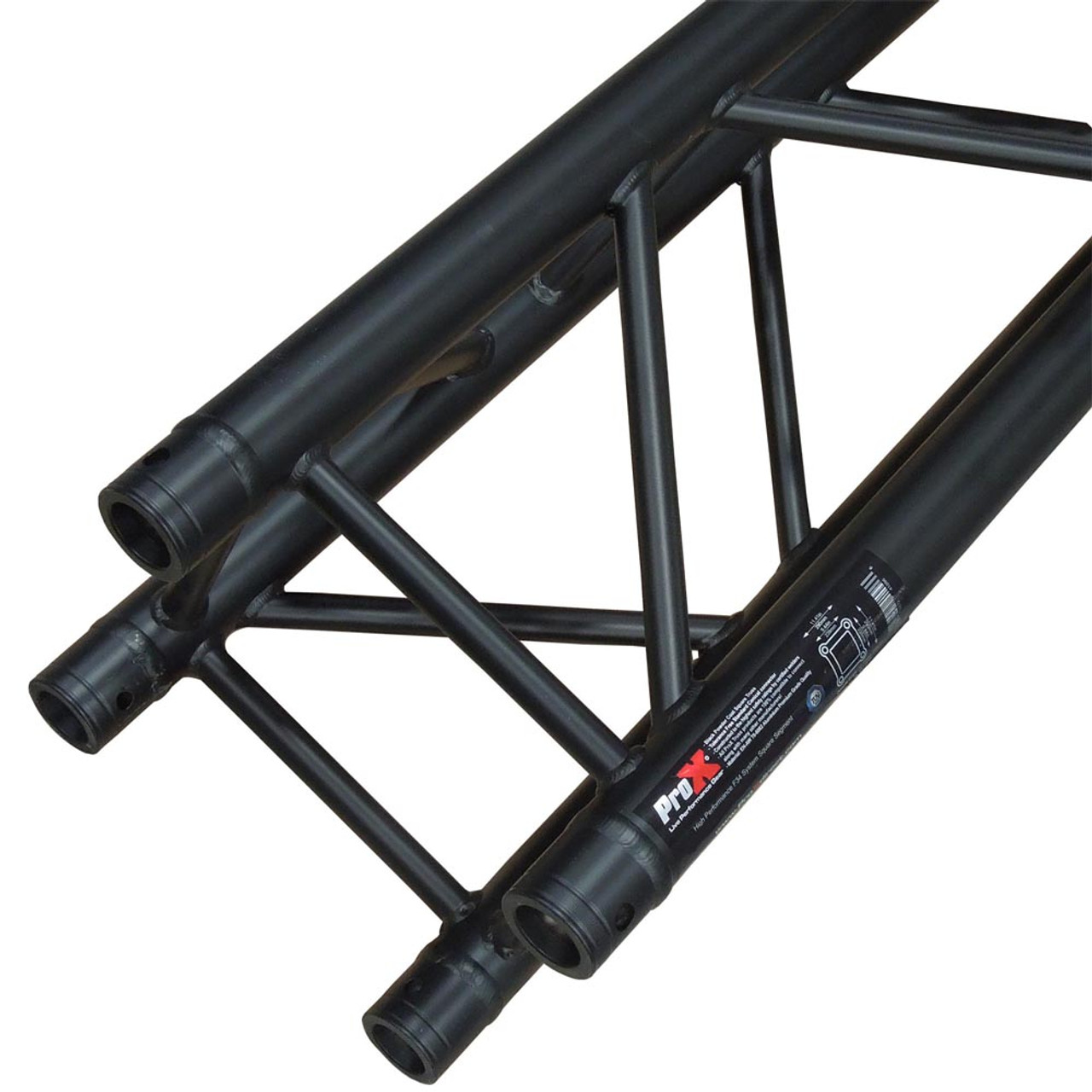

The ProX XT-SQ328BLK | 2mm Wall Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations.  ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength.  Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs --  while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors, and accessories that add stability while expanding on limitless design configurations.

Powder coating provides a stronger finish that is more resistant to damage than paint!  Using a black powder coat truss is an effective way to add character to your truss designs. Powder-coated black aluminum ProX truss products provide an extra element that will help to personalize your truss display.  Powder-coated finishes provide durability that reduces the risk of scratches, chipping, abrasions, corrosion, fading, and other wear issues.

ProX Goes Green - Unlike many liquid paints, powder coatings offer a smaller carbon footprint which reduces the adverse effects on the environment.  Powder coatings contain no solvents and release little or no amount of Volatile Organic Compounds (VOC) into the atmosphere!

• Tolerance Free Conical Connector System
• Main tube wall thickness of .08in (2mm)
• ProX Heavy-Duty Connector Sockets

XT-SQ SERIES DIMENSIONS:

• Height: 11.42in / 290mm
• Width: 11.42in / 290mm
• Weight: 21lb per 3.28 ft / 9,5kg per meter
• Main Tube: 2in / 50mm
• Wall Thickness:  .08in / 2mm
• Braces: .75in / 20mm

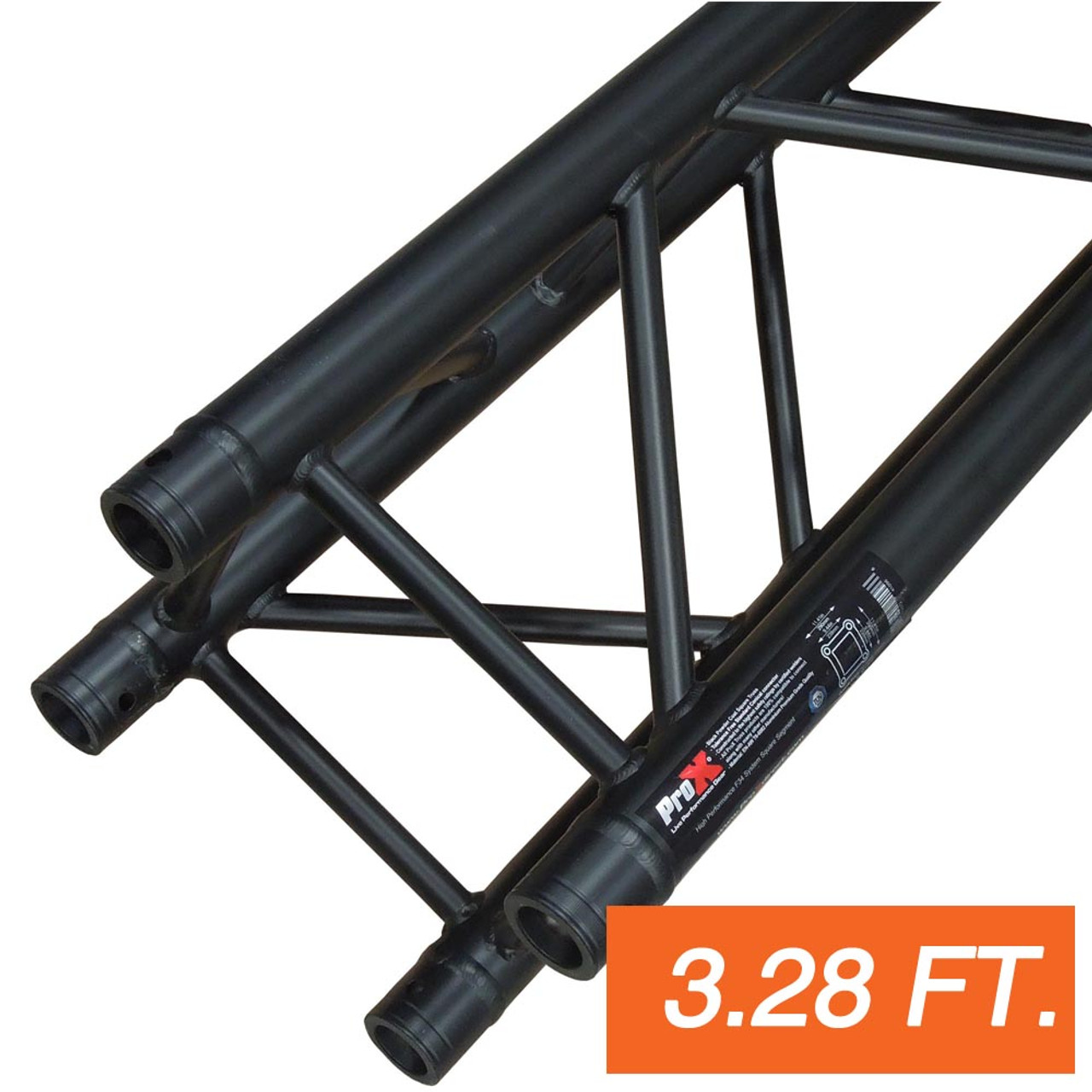

• Actual Height: 3.28 ft (1 Meter) Square Truss Segment
• Actual Weight: 19 lbs
• Includes connecting hardware set.

Features

• Manufactured in our Own Factory!
• Material: EN-AWT6 6082 Aluminum
• 2mm Wall Thickness
• TUV Certified Aluminium Welding
• Black Powder Coated

 ProX Truss products utilize industry standard dimensions to be compatible to connect to/with many other manufacturers' F34 trussing products.

Specifications:
