ProX XT-SQ12D

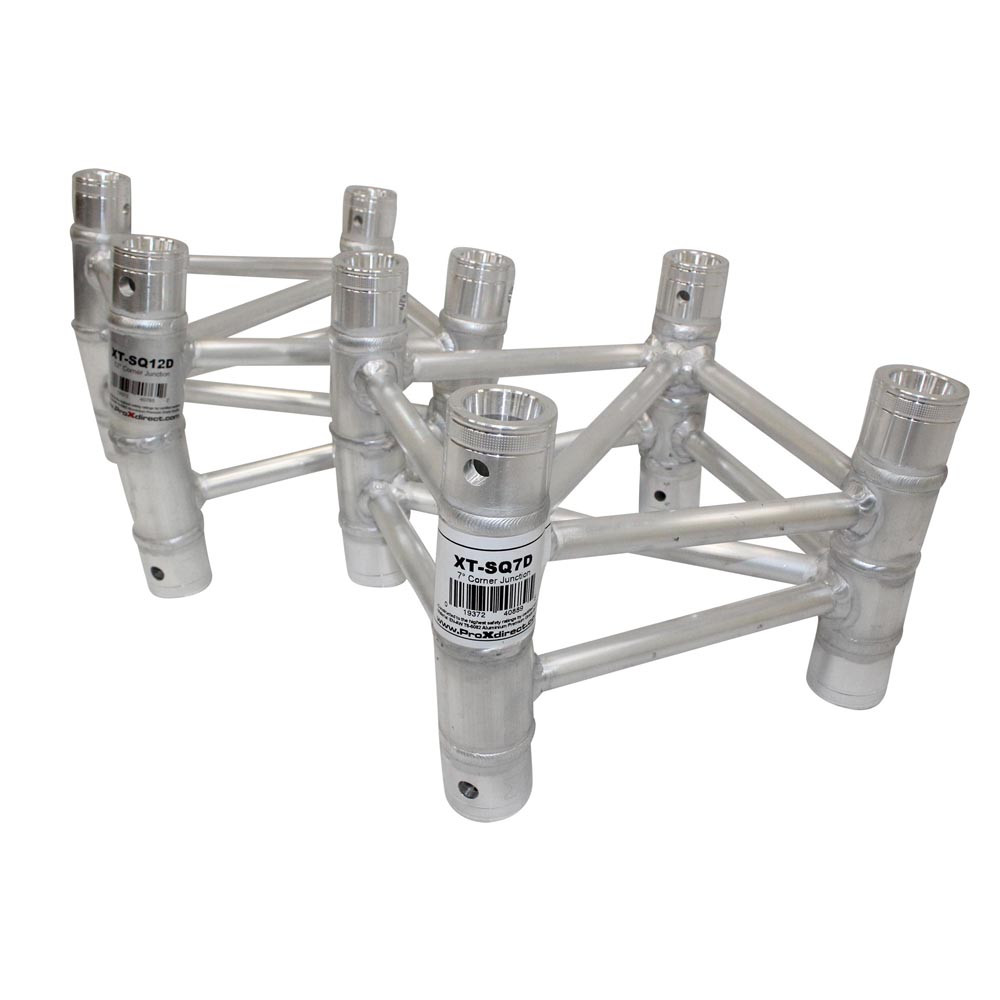

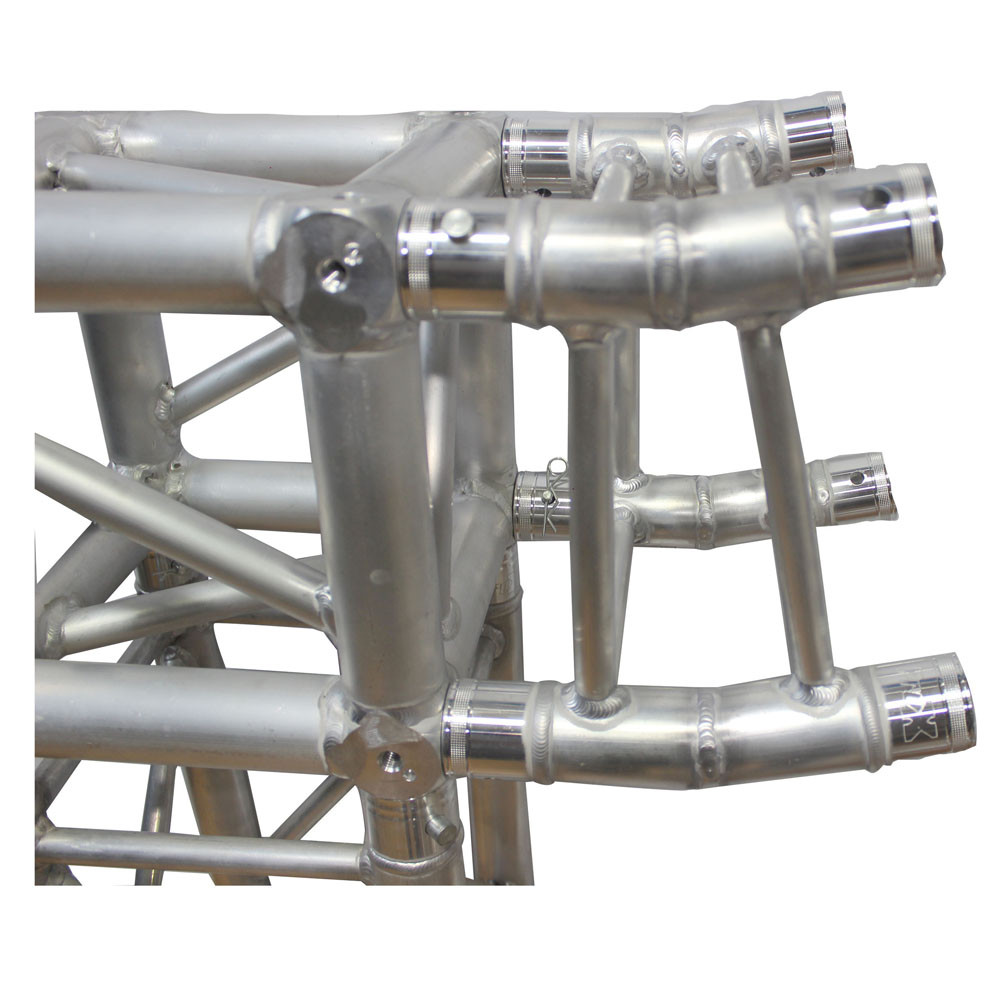

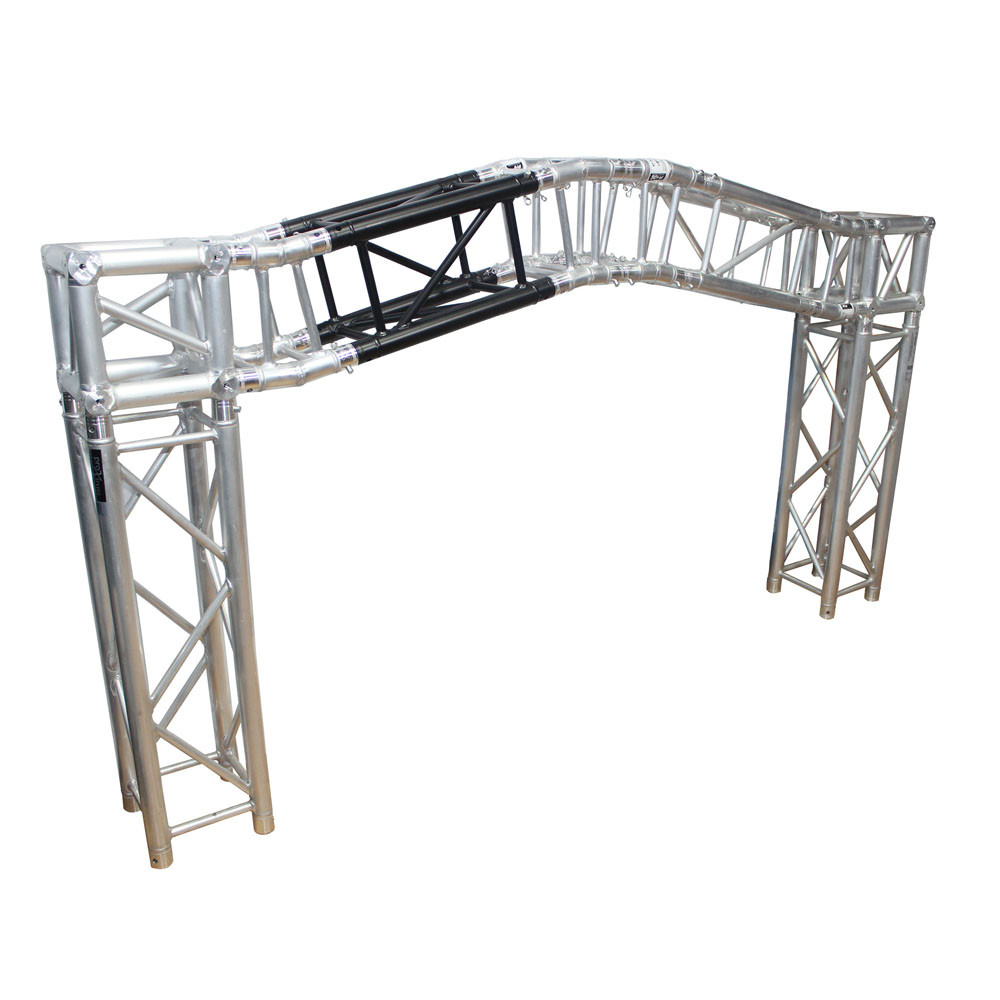

The ProX XT-SQ12D 12 Degree F34 Square Truss Angle Connector | 2mm Wall two way, fixed angle connector can be used singularly or in multiples to create angles and decorative designs not available with normal 90-degree box units while still maintaining excellent weight loading capabilities.  This is excellent for building roof structures and unique designs.

ProX Truss specializes in high-quality, general-purpose aluminum lighting and stage trussing designed for live stages, theaters, nightclubs, church installations, mobile applications, trade shows, and retail applications. Our products are built using 6082-T6 Aluminum Alloy compositions. This lightweight, corrosion-resistant aluminum has a very high tensile strength, giving you the support and stability you need. The ProX Truss Conical Coupling System allows for genderless trusses, providing a more precise line up of chords and fastening points, while the conical shape of the couplers helps to maintain overall rigidity at the stress points and makes parts harder to damage. This system also makes assembly quick and easy with very few tools needed to complete set up.

ProX XT-SQ series F34 trussing is a rugged and durable trussing solution perfect for live outdoor or indoor productions, exhibitions, retail displays as well as nightclubs, and other permanent installations. ProX also manufactures a comprehensive selection of trussing accessories including clamps, hanging & lifting points, spacers, box corners, mounting poles, base/top plates, and much more to complete your ideas and make your design an impressive rigging project or a simple show booth.  Always consult an engineer for complex designs!

ProX F34 Truss provides high strength with exceptional quality control and excellent pricing.

• Built to exacting specifications
• TUV Certified Welding & Processes
• Compatible with most Conical Coupled F34 trussing
• Includes tapered shear pins with clips and 4 conical couplings

Features

• Fabricated by certified TUV welders
• Equipped with connecting hardware
• Overall width-11.42" (290mm)
• Outer diameter tubing-2" (50mm)
• Diagonal bracing-3/4" (20mm)
• Wall thickness-0.08" (2mm)
• Unit weight-8 lbs.
• Aluminum Alloy EN AW-6082 T6
• F34 Square Aluminum Truss

Specifications

To Fit

Standard Conical Connection F34 Trussing

Dimensions

• 10.00"L x 11.42"W x 11.42"H
• Weight: 8.00 lbs

Shipping Dimensions

• 12.00"L x 12.00"D x 12.00"H
• Shipping Weight: 9.00 lbs
