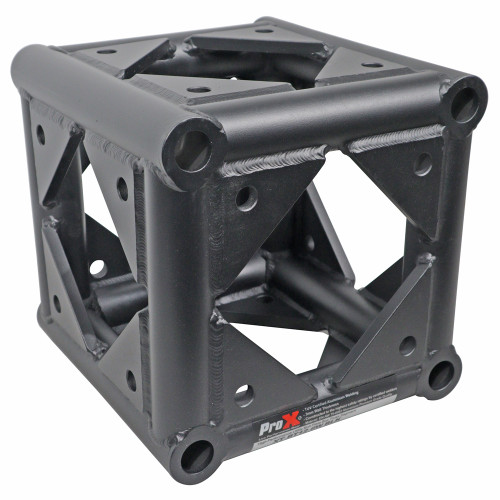

ProX XT-BT12-6W

ProX XT-BT12-6W BoltX™  6 Way Block, Professional Box Truss is designed and engineered for many applications like stage lighting, concerts, Ninja Obstacle Course type construction, and similar uses.  Setting ourselves apart from other box truss manufacturers BoltX™ has an innovative end plate designed and manufactured with heavy-duty aluminum material, welded on both sides, and our exclusive circular rings at each corner of the truss to reduce or eliminate damage to the main chord ends. Our outstanding quality control and manufacturing techniques assure excellent fitment at every connection to expedite your setups.

Compatible with most other 12″ Professional Box Truss Manufacturers utilizing a 6.75" bolt center pattern.

Each 6 Way Block includes Four sets of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers. (Total of 16 Bolts nuts and washers)

Features

ProX Live Performance Gear® recommends that you engage the services of a licensed engineering professional for complex loading configurations and/or conditions.

• 12″ x 12” x 12" Professional 6 Way Block W/Bolt Connection.
• Industry Standard Bolt Pattern 6 3/4" x 6 3/4" with 5/8" Holes
• Load Tested & Inspected During Manufacturing and Quality Control
• Includes Four sets of Four 5/8" - 11 x 2.5" (NC) attachment bolts, nuts, flat & lock washers.
• Compatible with most other 12″ Professional Box Truss Manufacturers
• Outer Tube Diameter of 2″, Wall Thickness 3mm (1/8″), Diagonal 1”, Wall of 3mm (1/8″),
• Welded to TÜV standards, 6082-T6 Alloy by GSI SLV-certified welders
• Weight: 17.5 Lbs.
• Finish: Natural aluminum

Specifications

To Fit

Compatible with most other 12″ Professional Box Truss Manufacturers

Dimensions

• 120.00"L x 12.00"W x 12.00"H
• Weight: 17.50 lbs

Shipping Dimensions

• 13.00"L x 13.00"D x 13.00"H
• Shipping Weight: 23.00 lbs
