Crank Stands

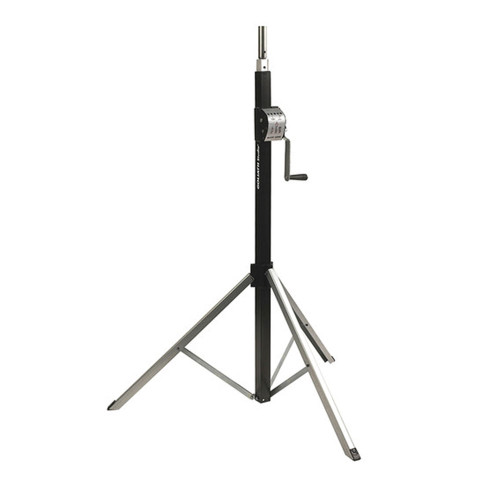

Duratruss DT-3800L Crank Stand

Maximum load 176 lbs. 80kg Minimum load 22 lbs. 10kg Maximum height 12.46 ft. 3800mm Folded height 5.75 ft. 1755mm Weight 37.47 lbs. 17kg Foot extension dia. 3.93ft 1200mm

Duratruss DT-3900L Crank Stand

Maximum load 250 lbs. 113kg Minimum load 22 lbs. 10kg Maximum height 12.46 ft. 3800mm Folded height 6.0 ft. 1828mm Weight 46 lbs. 20.86 kg Foot extension dia. 5.0 ft 1524mm

Global Truss DT-PRO4000

Unit Weight: 29kg/64lbs Max. Load Capacity: 120kg/265lbs Max. Height: 3.8m/12.5ft Min. Height: 1.37m/4.5ft Folded Base: 8in x 8in Unfolded Base: 49in x 49in Insert Diameter: 1.375in

Global Truss ST-132 Crank Stand Duo Package

Unit Weight: 29kg/64lbs Max. Load Capacity: 120kg/265lbs Max. Height: 3.8m/12.5ft Min. Height: 1.37m/4.5ft Folded Base: 8in x 8in Unfolded Base: 49in x 49in Insert Diameter: 1.375in

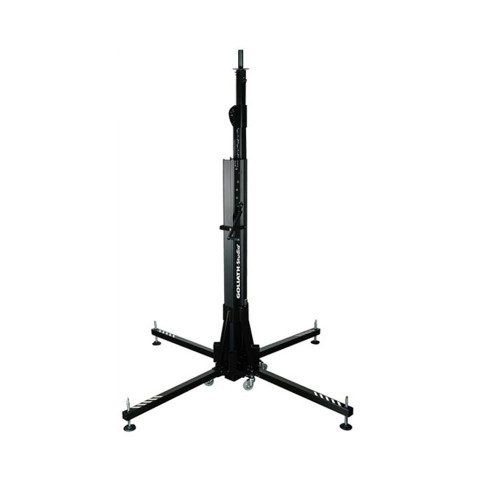

Global Truss DT-PRO5200

Unit Weight: 50kg/110lbs Max. Load Capacity: 200kg/440lbs Max. Height: 4.85m/15.9ft Min. Height: 1.95m/6.4ft Folded Base: 15in x 15in Unfolded Base: 52in x 52in Insert Diameter: 1.375in

Global Truss DT-TA34 TRUSS ADAPTER

Overview Compatible: DT-3800L, DT-3900L, DT-PRO4000 & DT-PRO5200 Crank Stand Truss Compatible: F33 & F34 Truss Unit Weight: 5lbs

ST-90

Max Height 118" (3m) Max Vertical Load 143lbs. (65kgs) Insertion Diameter 1 3/8" Base Fully Extended 44" (1.1m) Unit Weight 24lbs

ST-132

Max Height 118" (3m) Max Vertical Load 143lbs. (65kgs) Insertion Diameter 1 3/8" Base Fully Extended 44" (1.1m) Unit Weight 24lbs

ST-157

Max Height 15.7ft Max Vertical Load 350lbs. Unit Weight 150lbs.

ST-180

Max Height 18ft Max Vertical Load 440lbs Min Height 5ft 1in Unit Weight 229lbs Folded Base 18in by 18in Unfolded Base 86in by 86in Insert Diameter 2.2in by 2.2in

STSB-005

M40mm diamater support bar/truss Adaptor for ST-90, ST-132, & ST-157 18" wide secure latches adjustable from 4.5" to 16"

STSB-006

M40mm diamater support bar/truss Adaptor for ST-90, ST-132, & ST-157 18" wide secure latches adjustable from 4.5" to 16"
